  1. Clips & Clip deck

What are the small icons on the clip buttons?

PreviousAssigning clips to laser zonesNextClip settings

Last updated 4 months ago

Was this helpful?

Sometimes you will see small symbols on the clip buttons :

  • Microphone symbol - this clip has a Sound Input oscillator, and will respond to audio in some way.

  • MIDI symbol - this clip has a MIDI Notes node, so responds to MIDI input.

  • T - this clip has been played with the Timeline rather than manually.

If the clip uses the Zone delay / chase system, you'll see three dots on the clip button. These animate in a way that represents the zone delay settings.

  • Zone delay - the dots will animate up and down with a delay

  • Chase - the dots will flash on and off

  • Delay with re-trigger - the dots will animate with a reset on every repeat.

🟦
✅
The Sound Input and MIDI Notes symbols on the clip buttons

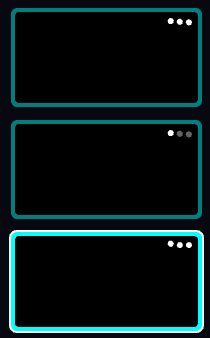

The Zone delay / chase symbols
